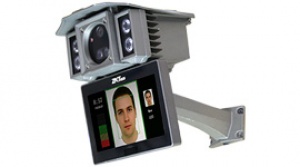

ZKTeco Biocam300 Face IP Camera

BioCam300 is one of the most revolutionary cameras on the market today, as it includes an integrated facial recognition module and a color display especially designed for T&A and access control.


Download PDF :  Biocam300




Biocam300 is an embedded facial recognition high definition IP camera. With 4pcs of array IR LEDs, it can utilize day & night real-time monitoring. With ZK embedded high integrated facial recognition module and relatively long distance face recognition algorithm, it can support 2.5m to 4m range facial recognition suitable for different users’ heights. BioCam300, remote control included, has a high definition full color display screen to show face registering information, face recognition result and real-time monitoring video. The operation is very simple and the interface is user friendly.
With dual CPU framework, the camera can accomplish standalone registration, recognition, and high-speed data transmission storage. It can support 400 face registrations and recognition while simultaneously monitoring . Biocam300 is a three-in-one solution including video surveillance, time & attendance, and single channel access control management. It can be applied in many high security areas such as:  customs, airports, buildings, banks, supermarkets, hotels, casinos, VIP clubs, turn styles, parking lots etc.

Features

Access Control Camera Door Lock Ethernet Face Recognition Linux O.S  Webserver  Exit button  Ethernet / RJ-45  Time & Attendance Wiegand In/Out
  • High resolution, up to 1 megapixel for network camera
  • Dual H.264 Streams
  • Supports WDR function
  • Maximum standalone capacity of 400 users and 100,000 logs
  • 7 inch LCD for message and menu display
  • Remote control for easy operation
  • Built- in array IR LED light for night vision
  • Local face detection, capture, registration, & recognition
  • Relay output designed for direct electric lock control
  • Supports T&A and A&C function
  • Supports data upload and download

Camera Performance

Image Sensor
1/3″ WDR progressive CMOS sensor
Image Resolution
1280×720
Minimum Illumination 1 Lux (IR lamp off); 0 Lux (IR lamp On)
Lens
6mm fixed lens

Video

Video Compression H.264 main profile level 3
Video Resolution Main stream: 720P@1536~10240kbps; Secondary stream: D1@768~4096kbpsSecondary streem: 720P@1280×720; Secondary stream: D1@704*576
Video Frame Rate
PAL: 1~25 frames optional / NTSC: 1~30 frames optional
Image settings
Brightness, saturation, contrast, chroma, gain,exposure, flip image vertically / horizontally and night vision mode adjustable
Audio Output 1 channel line output

Network

Security Multi-level users access with password protection
Network Interface
10Base-T/100Base-TX ethernet interface
Supported Protocol
TCP/IP, HTTP, TCP, UDP, ARP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,ONVIF, P2P.
Card Slot Supports Micro SD Card, up to 32 GB
Storage Snapshots and video clips

Alarm and Event Management

Motion Detection
Detecting area that can be set to any shape
Control Interface 1 Remote Control included
Dormant Function
Dormant function when no face image is detected
Access Control Simple access control function (door sensor, exit button, 3rd party electric lock, wiegand input , wiegand output)
Face Capacity 400
Logs Capacity 100.000

General

Casing Display
7-inch LCD that is used to display the image area of face recognition
Power Supply DC 12V, ≥1.5A
Power Consumption ≤15W
Working Conditions -10~ +50 ºC, 10 ~ 80%RH
Installation Mode
Wall-mounted, ceiling mounted (optional), floor mounted (optional)
Weight N.W.: 1.55 Kg G.W.: 2.6 Kg
