SCR-100 is an access control terminal with incorporated proximity reader (EM by default).

With a modern and elegant design without keypad and display, it’s the perfect solution for small and medium access control installations. It can connect to access control management software by Ethernet or RS232/485 port, and also operate on standalone mode, downloading data by USB pendrive. Furthermore, this terminal includes embedded Web server software. For access control, it allows time zones and groups, holidays management, anti-passback functions and the relay can be connected to lock or external siren. It includes wiegand port to connect external proximity reader and it can be used as a controller’s external reader using Wiegand Out port.

Download PDF :  zxteco_scr100


Access Control Alarm Door Lock EM RFID Ethernet Standard Firmware  Linux O.S  Webserver  Exit button  RS-232 / RS-485 SDK USB Host Wiegand In/Out ZEM500
Internal Battery  HID RFID MF RFID Customized Firmware
  • Access control device
  • Incorporates EM reader and optional Mifare, HID, etc..
  • Stores up to 30000 users and cards.
  • Stores up to 50.000 log records without PC download.
  • Allows communication with PC through Ethernet and RS232/485
  • It includes as standard Web server function
  • Time zones, groups and holidays management for access control
  • It has USB Host to download log records

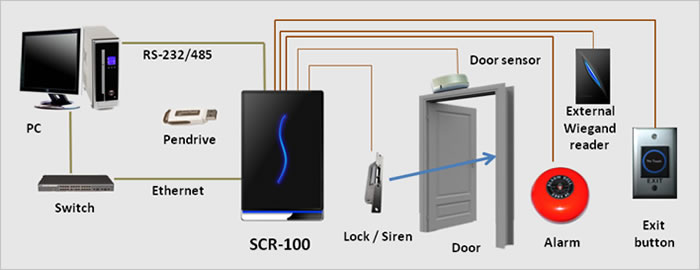

SCR100 2
ID Card Capacity 30.000
Transaction Capacity 50.000
Platform ZEM500
CPU 32 bit ZK6001 microprocessor 400MHz
Memory 4M RAM, 32M Flash
Proximity EM Module
Relay contacts Lock control, Alarm
LED Indicator Green / Red
Oper. Temp 0°-45°C
Oper. Humidity 20%-80%
Power 12V, DC 3A
Comm. Port Ethernet, RS232/485
Pen drive USB-host
Wiegand In&Out
Proximity Module
Type EM card
Identification <=1 sec
Dimensions 153×95.5×35.5mm (L x W x D)
Weight 0.7kg
O.S Linux
Applications AC (groups and TZ)
SDK Standard SDK
